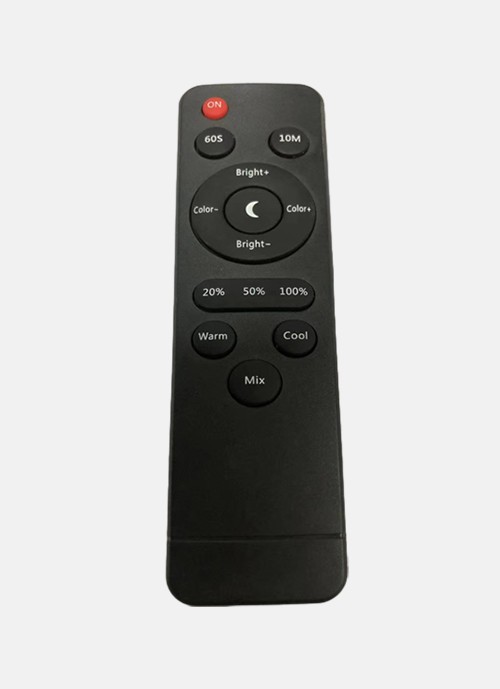

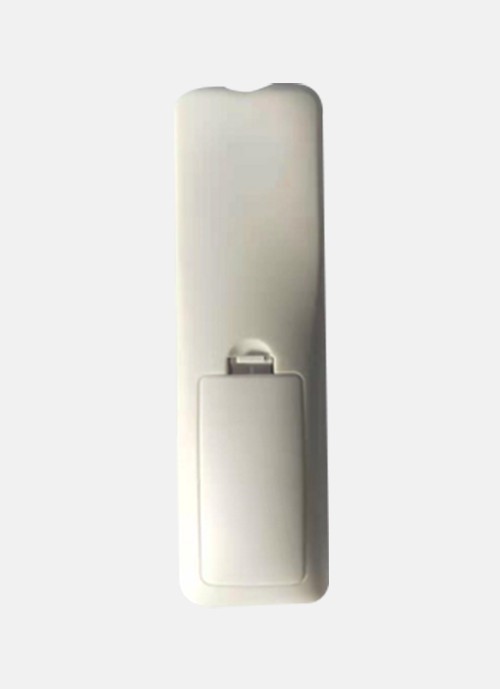

Model: WRT8014/14 keys

Size: 140*52*16mm

Launch tube diameter: 5mm

Transmission/encoding: NEC or designated microcontroller encoding

Working current range: 6--12mA

Quiescent current: less than 5uA

Battery: 1.5AAA*2

Infrared emission frequency: 38KHz

Working distance: more than 12 meters (receiver sensitivity ≥0.5mW/m2

Working temperature: -45～+55 or specific specification requirements

Storage temperature: -25～+55 or specific specification requirements

Frequency: 455KHz or according to the chip used

Standard packaging: Pe bag, bulk bag
